2014-2023 Lexus GX460 Rear Tow Hitch Receiver Hybrid Bumper
-
Our GX460 Rear Tow Hitch Receiver is made with 1/2 inch high-strength steel to ensure durability.
-
The protruding design of our GX460 Rear Tow Hitch Receiver’s Hybrid Bumper offers protection against low speed rear impact.
-
Our dual hitch pin design (1.5 inch and 2.5 inch from the front of the hitch) allows compatibility for most of the tow hitch products on the market.
-
Mounts to the OEM tow hitch receiver mounting locations, and designed, engineered and tested according to the SAE J684 and J2807 standard:
Class IV
Receiver opening: 2" x 2"
Maximum GTW 6,500 lbs.
Maximum TW 650 lbs.
-

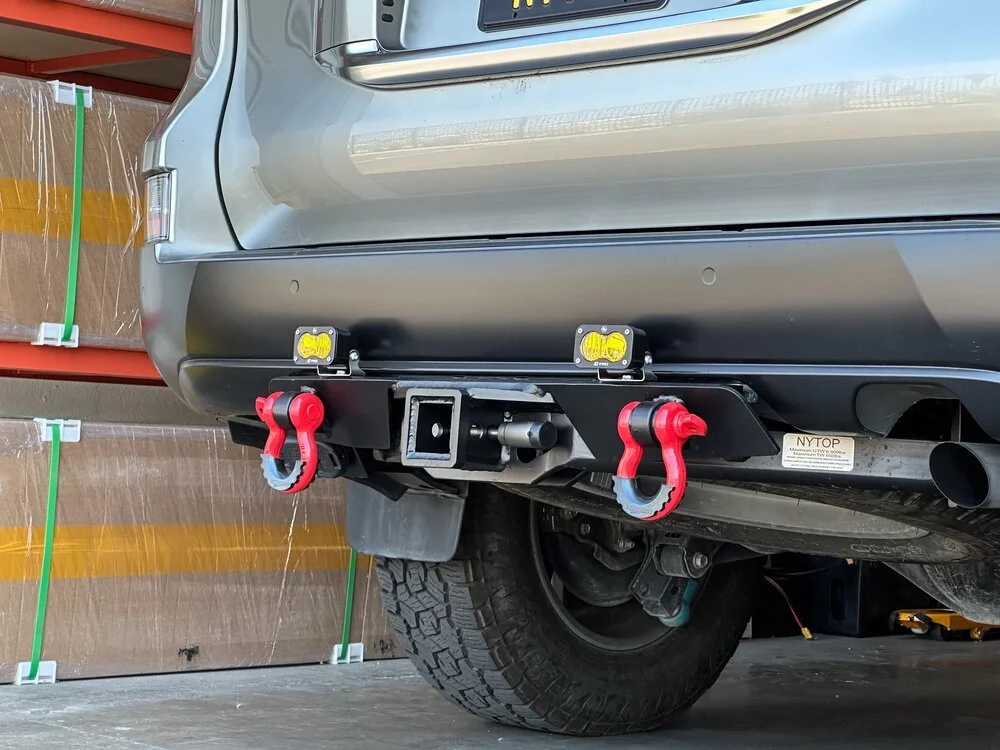

Pre-drilled M6 screw holes on top allows you to mount off-road lights, such as Baja Design S2 lights.
-
The Hybrid Bumper provides two off-road recovery points for 3/4 inch D-ring/shackles.
Class IV Rated!
Our NYTOP GX460 Rear Tow Hitch Receiver is designed, engineered and tested according to the SAE J684 and J2807 standard:
Class IV
Receiver opening: 2" x 2"
Maximum GTW 6,500 lbs.
Maximum TW 650 lbs.
Our tow hitch itself has passed all the tests and was rated for 22,000 lbs of GTW. However, because of the limitations of the GX460’s chassis, we do not recommand towing above the factory rated 6,500lbs GTW.
Early pre-production prototype being tested shown in picture.
