2024-Current Toyota Land Cruiser Fender Flare Kit Installation Guide

Close-up of a blue off-road vehicle's front wheel and fender, with red arrows pointing to various components around the wheel arch.
Close-up of the underside of a vehicle's rear hatch showing two circled areas: a black plastic button and a screw with a hex head.
Close-up of the underside of a vehicle's wheel well showing three screws highlighted with red circles.
Close-up of a vehicle wheel well showing screws circled in red, with visible tire tread.
The underside of a vehicle showing a black plastic panel with two red-circled holes and some textured markings, with a blue sky and some green trees in the background.
Black plastic car part with multiple screw holes marked with red circles, placed on a concrete floor with cardboard boxes and yellow hoses in the background.

Before the installation, remove the factory fender flares by removing all push pin clips and bolts in the wheel well as indicated, and pulling on the fender flares to release all the clips on the back side. Remove mud flaps if equipped.

Front fender flare shown.

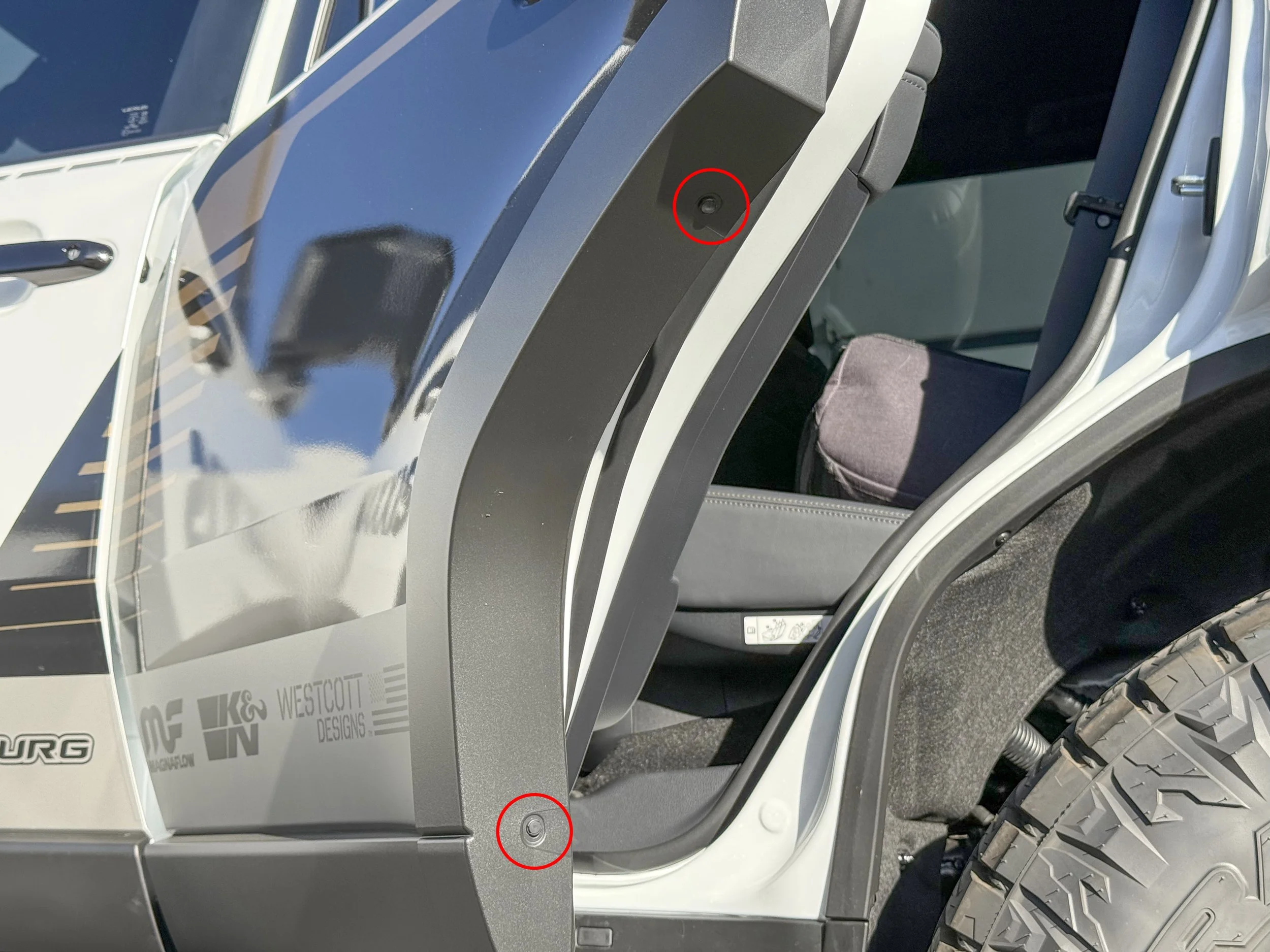

Close-up of the side of a vehicle showing the door frame with two small black sensors circled in red.

Rear door fender flare shown.

Close-up of a vehicle wheel with two sensors highlighted in red circles, fastened near the wheel rim.
Close-up of a vehicle wheel well with several screws circled in red.

Rear fender flare shown.

Close-up of a carbon fiber component with a transparent plastic cover and a white foam sheet underneath.
Close-up of a carbon fiber racing helmet with yellow fasteners and a label marked
Four black carbon fiber car wheel arches with red trim and yellow mounting clips laid on a beige carpet.

Apply 1 layer of the 3M™ tape to the back side of the fender flares, as shown in the picture.

Insert the plastic clips into each slot on the back side of the flares. Double check that the yellow clips are fully seated into their slots on the back side of the flares, use a drill to clean up the slot if needed.

We recommend applying adhesion promoter on the back side of the flares before installing the 3M™ tape to help with better adhesion.

Make sure to thoroughly clean the paint with Isopropyl alcohol.

Optimal surface temperature for the 3M™ Super Strength Molding Tape is above 65°F (18°C).

Close-up of a carbon fiber component with a red support, with a white off-road vehicle tire in the background.

Next, peel off only an inch of each end of the tape and leave the backing as shown in the pictures. Then line up each fender flare to the body panels by the yellow clips and make sure that the push pin tabs are sitting below the wheel well liner like the OEM flares.

Peel off the backing of the tape and apply even pressure to clip the fender flares in place and bond the fender flares to the body panel.

Close-up of the front section of a light blue off-road vehicle with large, rugged tires and carbon fiber accents on the fenders.

Finally, reinstall all the OEM push pin clips and bolts back into their original positions.

Enjoy the added protection and improved aesthetics to your vehicle!
