Lexus
LX600/700h
Skid Plate Assembly
Skid Plate Assembly
2022-Current Lexus LX600/700h Skid Plate Assembly. Fits all trim levels.
LX600/700h
Skid Plate Assembly
Skid Plate Assembly

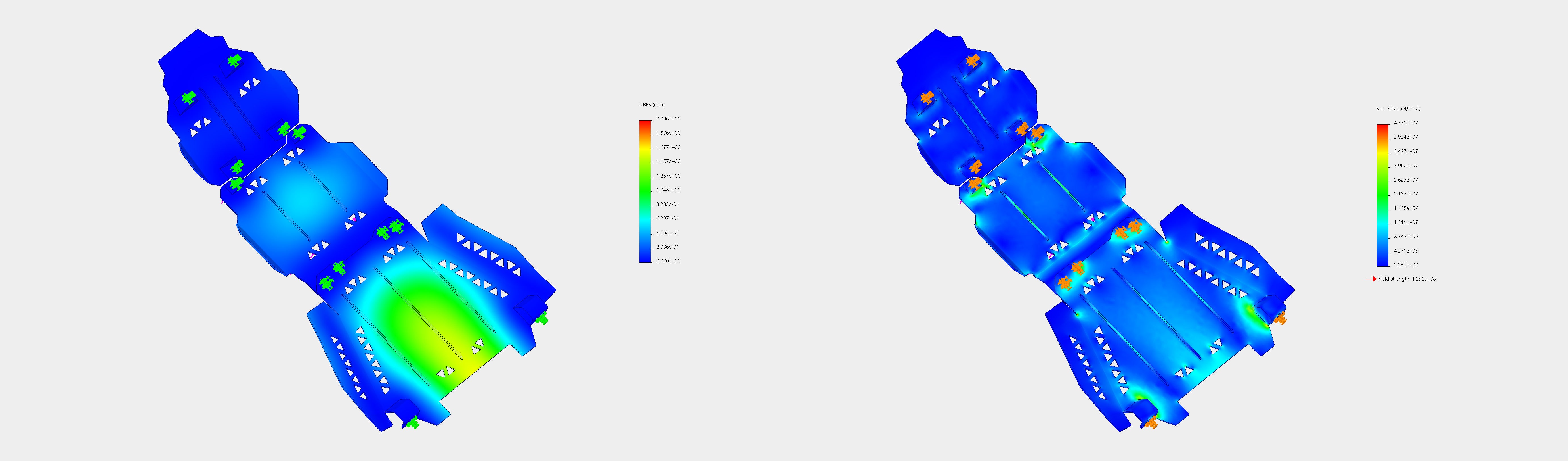

Design & Engineering
Design & Engineering

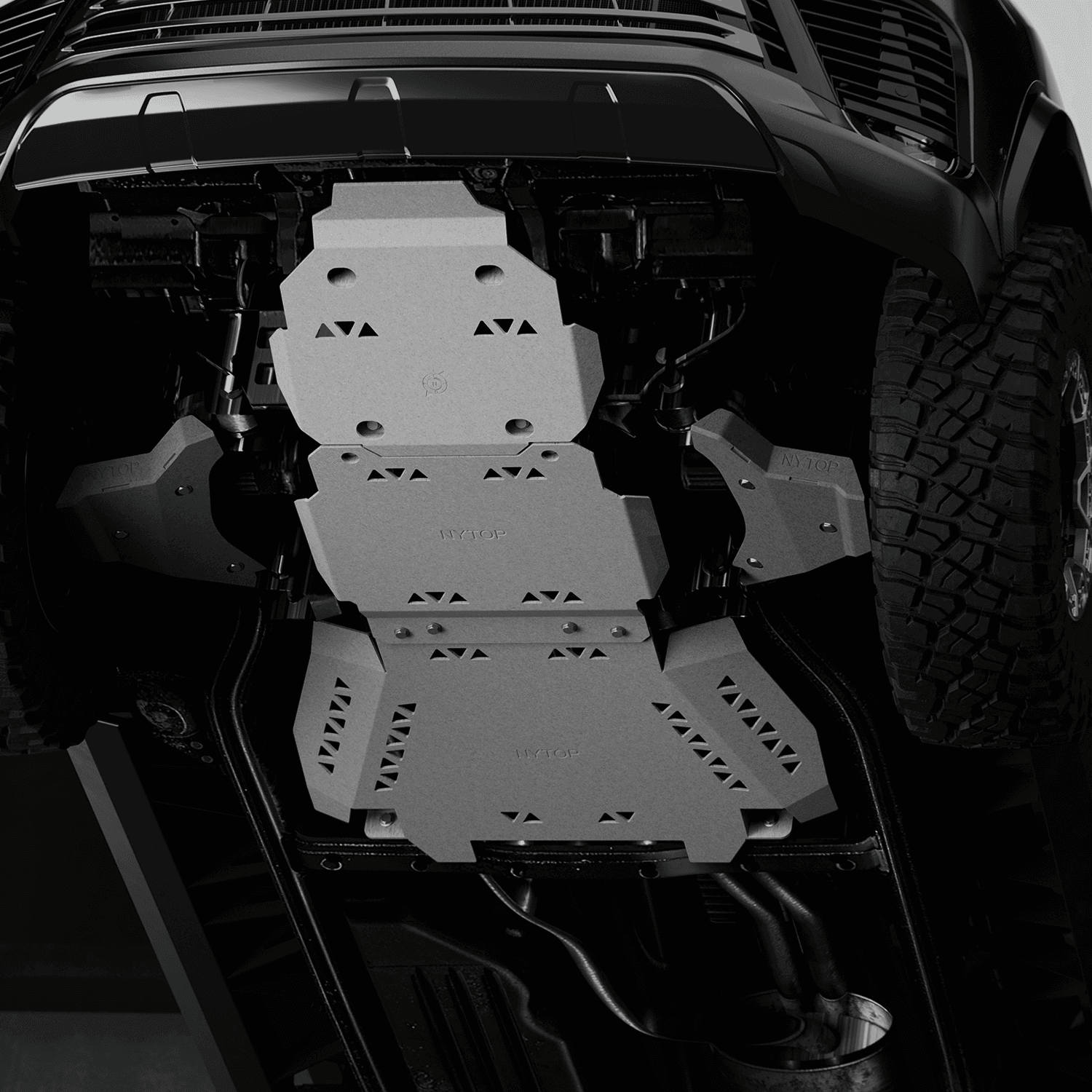

Product Weight: 60 lbs. (Non-Hybrid) / 65 lbs. (Hybrid). Our Not Your Typical Skid Plate Assembly for the Lexus LX600/700h is made from ¼-inch aluminum, providing protection for both the engine and transmission while also serving as a catalytic converter shield. The modular 3-piece construction allows for easy removal and convenient access during maintenance.
Product Weight: 60 lbs. (Non-Hybrid) / 65 lbs. (Hybrid). Our Not Your Typical Skid Plate Assembly for the Lexus LX600/700h is made from ¼-inch aluminum, providing protection for both the engine and transmission while also serving as a catalytic converter shield. The modular 3-piece construction allows for easy removal and convenient access during maintenance.
INSTALLation & USAGE
INSTALLation & USAGE
All necessary mounting hardware included. DO NOT use the skid plate as jacking points, unless the billet jacking block is installed. Only jack directly below the billet jacking block. Torque down all the M8 bolts to 21 ft-lbs./29 Nm. and M10 bolts to 48 ft-lbs./65 Nm.
All necessary mounting hardware included. DO NOT use the skid plate as jacking points, unless the billet jacking block is installed. Only jack directly below the billet jacking block. Torque down all the M8 bolts to 21 ft-lbs./29 Nm. and M10 bolts to 48 ft-lbs./65 Nm.
