Lexus & Toyota

GX550 (2024+) & Land Cruiser (2024+)

Rock Sliders

Rock Sliders

2024-Current Lexus GX550/Toyota Land Cruiser (Prado/LC250) Rock Sliders (Pair).

Select quantity

1

1

1

Max: | Current: 0 | At Max: No
Max: | Current: 0 | At Max: No
Max: | Current: 0 | At Max: No

GX550 (2024+) & Land Cruiser (2024+)

GX550 (2024+) & Land Cruiser (2024+)

Rock Sliders

Rock Sliders

nan

Design & Engineering

Design & Engineering

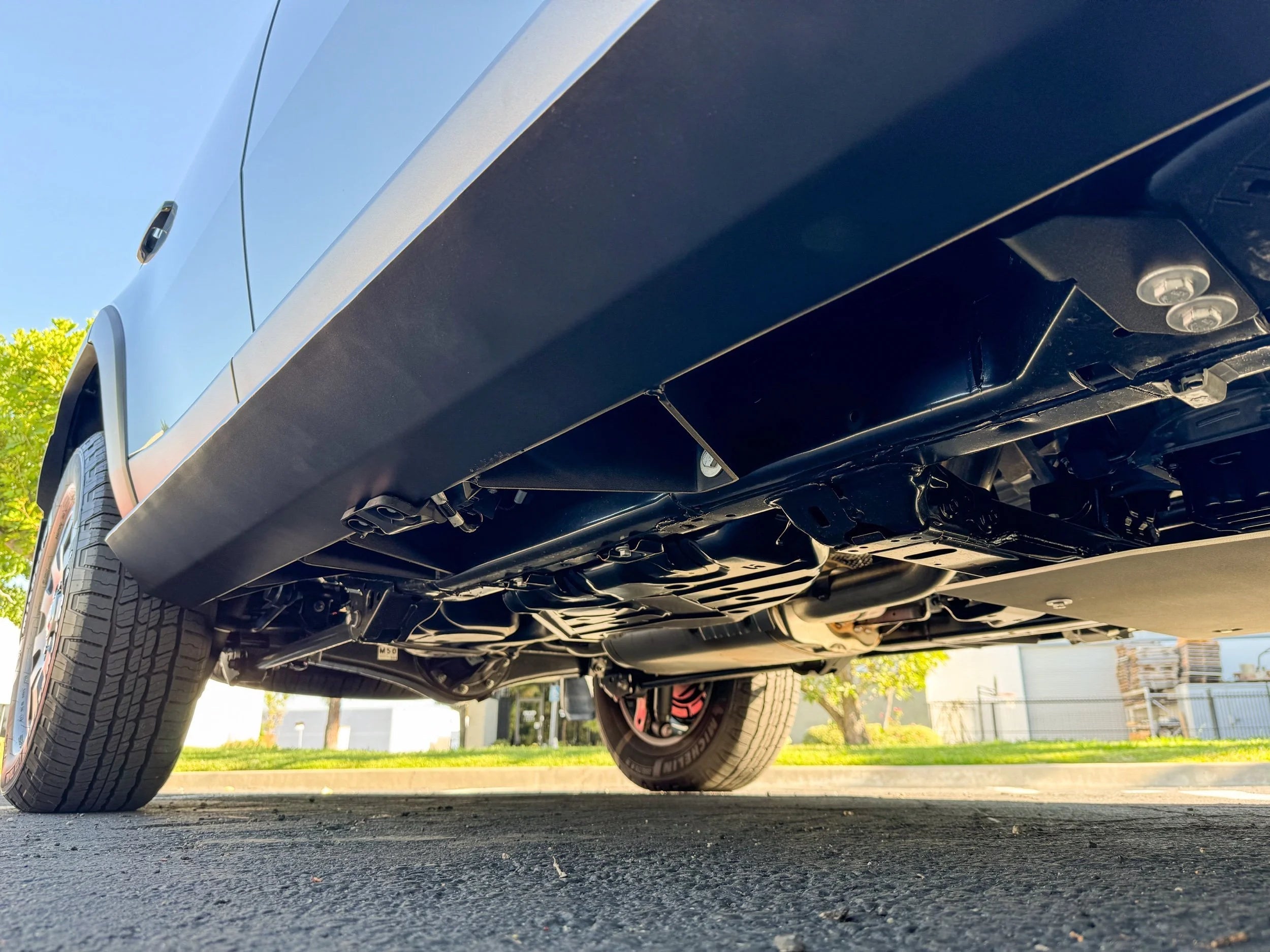

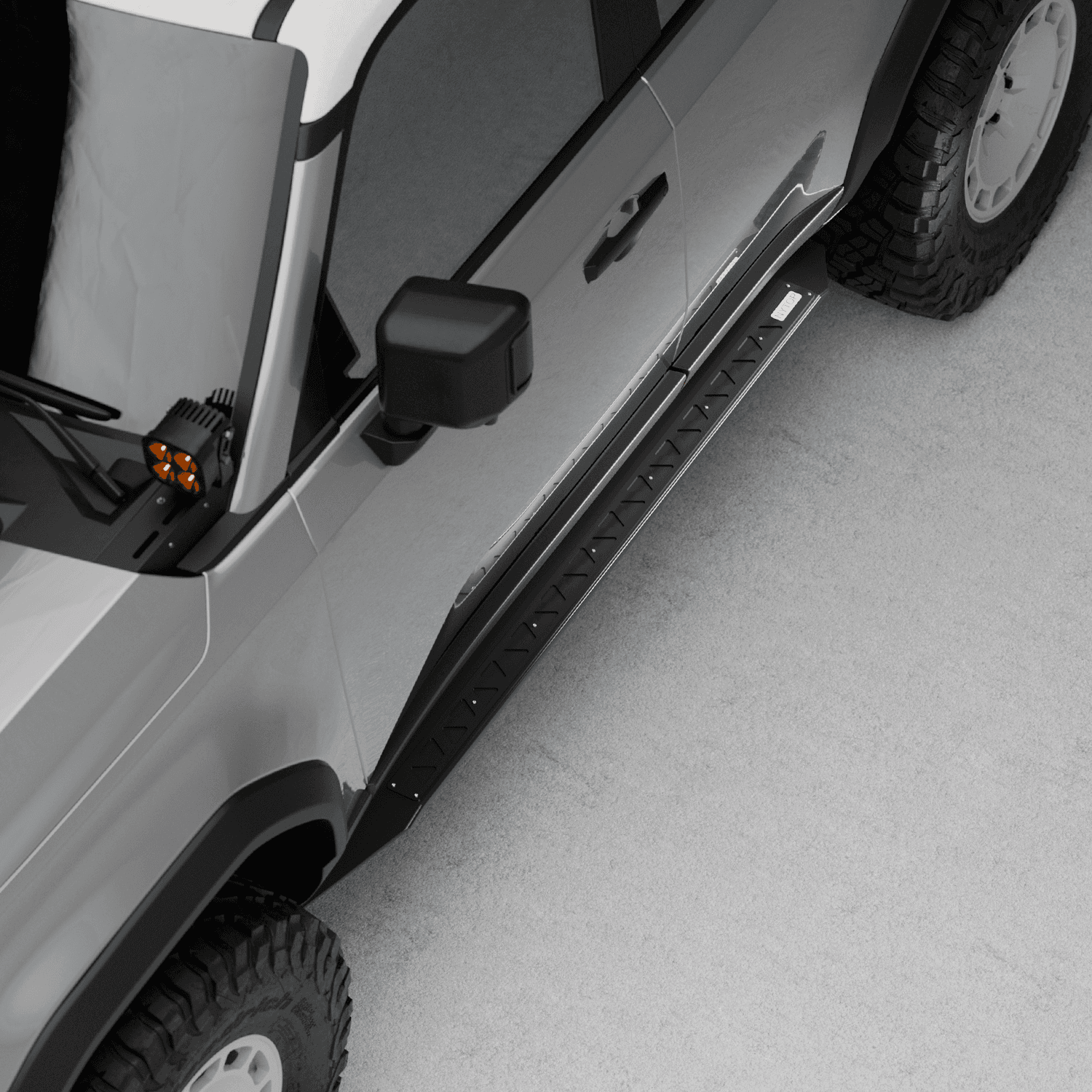

Product Weight (Pair): 150 lbs. Fits on all trims. Our Not Your Typical Rock Sliders for the Lexus GX550/Land Cruiser mount directly to the frame, providing protection to the vehicle's body, while also acting as side steps. They are finished in wrinkled black powder coat, and TIG welded with 3/16-inch and ¼-inch high-strength steel to ensure durability. The sliders have a high clearance and a low profile. They are also crafted with a non-traditional design that forgoes conventional tubular construction. This change allows for a 28.5° flat, angled bottom surface optimized for sliding, while the top remains level to provide a practical, 4-inch wide stepping platform for effortless vehicle entry and exit.

Product Weight (Pair): 150 lbs. Fits on all trims. Our Not Your Typical Rock Sliders for the Lexus GX550/Land Cruiser mount directly to the frame, providing protection to the vehicle's body, while also acting as side steps. They are finished in wrinkled black powder coat, and TIG welded with 3/16-inch and ¼-inch high-strength steel to ensure durability. The sliders have a high clearance and a low profile. They are also crafted with a non-traditional design that forgoes conventional tubular construction. This change allows for a 28.5° flat, angled bottom surface optimized for sliding, while the top remains level to provide a practical, 4-inch wide stepping platform for effortless vehicle entry and exit.

nan

INSTALLation & USAGE

INSTALLation & USAGE

All necessary mounting hardware included. On certain GX550 premium or luxury trims, the rock sliders need to be installed with ¼-inch self expansion bolts. Check on both sides of the frame to see if there are threaded nuts welded on the backside of the mounting holes, to determine if self expansion bolts are needed. ¼-inch self expansion bolts (12 needed) not included. The factory step lamps could be mounted onto the rock sliders with the provided M6 bolts, or mounted higher up under the cab using the OEM side step bolts, shown in the pictures. Torque down all the M10 bolts to 48 ft-lbs./65 Nm. Torque down the ¼ inch self expansion bolts to 14 ft-lbs./19 Nm.

All necessary mounting hardware included. On certain GX550 premium or luxury trims, the rock sliders need to be installed with ¼-inch self expansion bolts. Check on both sides of the frame to see if there are threaded nuts welded on the backside of the mounting holes, to determine if self expansion bolts are needed. ¼-inch self expansion bolts (12 needed) not included. The factory step lamps could be mounted onto the rock sliders with the provided M6 bolts, or mounted higher up under the cab using the OEM side step bolts, shown in the pictures. Torque down all the M10 bolts to 48 ft-lbs./65 Nm. Torque down the ¼ inch self expansion bolts to 14 ft-lbs./19 Nm.
